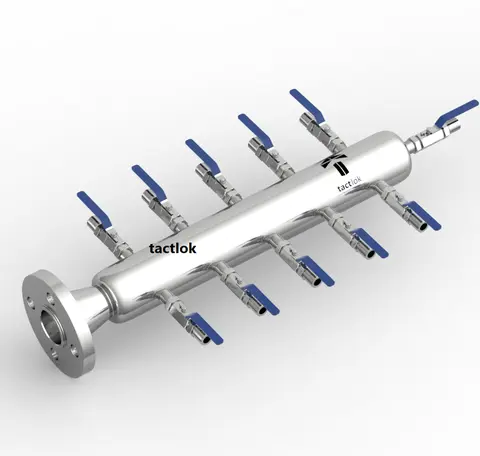

Precision-Engineered Air Header Manifolds by Samvay Fluid Tekniks Inc.
Optimize your plant’s compressed air distribution with Samvay Fluid Tekniks Inc.‘s premium range of Air Header Manifolds. Designed to centralize pneumatic connections and eliminate multiple leak points, our manifolds ensure a steady, clean, and reliable supply of instrument air to your critical control devices, valves, positioners, and transmitters across any industrial facility.
Product Overview

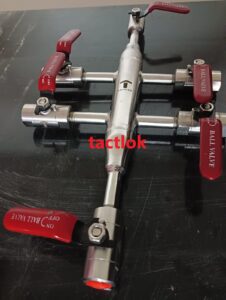

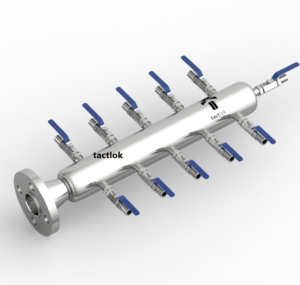

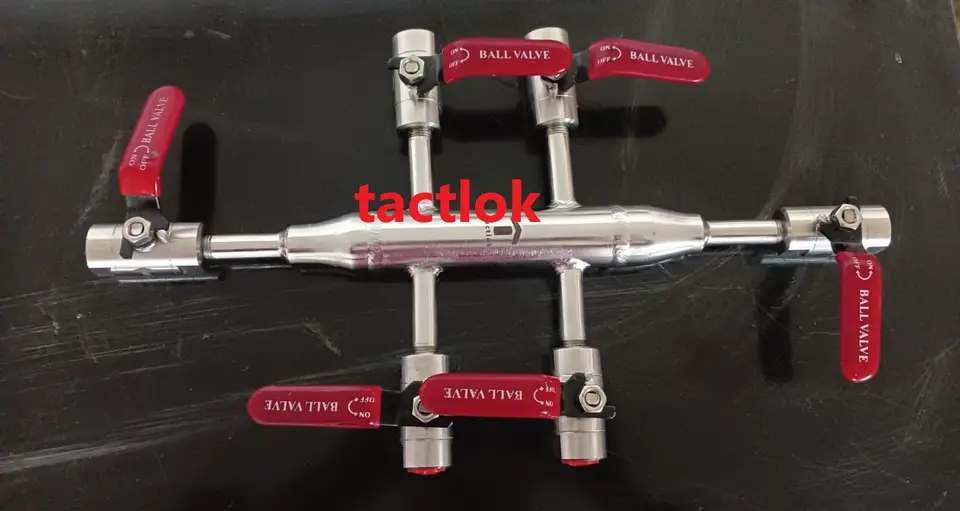

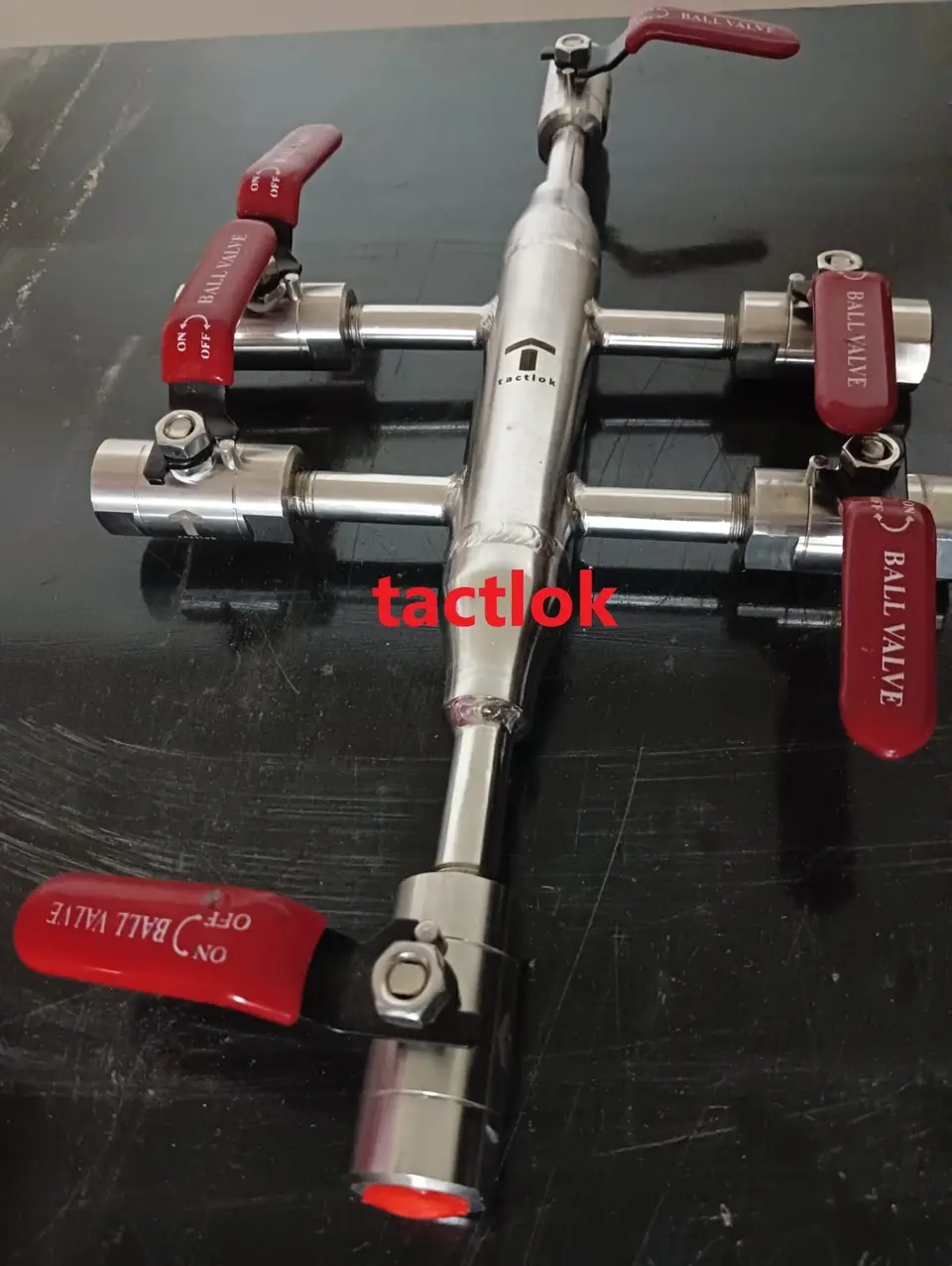

An Air Header Manifold serves as the central distribution hub for instrument air systems. Instead of running individual lines from the main compressor to each device, the manifold consolidates connections onto a single forged or seamless pipe body with multiple outlet ports, each typically equipped with an isolation valve.
This engineering approach offers significant advantages over traditional field-fabricated piping:
| Parameter | Traditional Field Piping | Samvay Pre-Assembled Manifold |
|---|---|---|
| Installation Time | 2-3 days | 2-3 hours |
| Leak Points | 20-30 threaded connections | 2-4 connections |
| Labor Cost | High (skilled fitters) | Low (simple mounting) |
| Space Required | Extensive | Compact |
| Future Expansion | Difficult, costly | Simple (blanked ports) |
| Appearance | Cluttered, unprofessional | Neat, organized |
| Quality Control | Site-dependent | Factory tested |
Primary Functions:
- Distribution: Central point for instrument air supply to multiple devices
- Isolation: Individual valves allow maintenance without system shutdown
- Organization: Neat, professional layout in control rooms and panels
- Future-Proofing: Blanked ports for easy addition of new instruments
- Pressure Regulation: Optional integral regulators for zone control
Our manifolds are custom-built to your exact specifications, ensuring perfect integration with your process layout and P&ID requirements.
Key Features & Benefits
| Feature | Technical Benefit | Operational Benefit |
|---|---|---|
| Custom Configurations | Built to your P&ID, not off-the-shelf compromises | Perfect fit every time |
| Pre-Assembled & Tested | 100% pressure tested before dispatch | Reduced site installation time and cost |
| Individual Outlet Isolation | Ball or needle valves on each outlet | Maintain or add instruments without system shutdown |
| Compact Footprint | Space-efficient design for crowded panels | More instruments in less space |
| Full Material Traceability | EN 10204 3.1 certification | Complete documentation for quality audits |
| Multiple Pressure Ratings | From 150 PSI to 6000 PSI | One source for all applications |
| Wide Temperature Range | -54°C to +232°C | Suitable for any environment |
| Mounting Flexibility | Wall, panel, or free-standing | Adapts to your facility layout |
| Future Expansion Ports | Blanked and capped outlets | Easy addition of new instruments |
| Identification Tags | Stainless steel tags on each outlet | Clear labeling, reduced errors |
Technical Specifications
| Specification | Details |
|---|---|
| Material of Construction | AISI 304/L, 316/L Stainless Steel; Carbon Steel (A105), Duplex, Super Duplex, Monel, Inconel on request |
| Inlet Connection | 1/2″ to 4″ NPT / BSP / Flanged (ASME 150# to 2500#) / Socket Weld / Butt Weld |
| Outlet Connections | 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″ NPT / BSP Female |
| Maximum Operating Pressure | Standard: 300 PSI (20 Bar); Medium-pressure: 3000 PSI (207 Bar); High-pressure: up to 6000 PSI (414 Bar) |
| Operating Temperature | -54°C to +232°C (standard); -196°C to +800°C (cryogenic/high-temp on request) |
| Number of Outlets | Customizable: 2 to 40 outlets (even numbers typical, odd available) |
| Outlet Spacing | Standard: 40mm / 1.5″; Custom: 30mm to 100mm as required |
| Valve Options | Ball valves (on/off), Needle valves (throttling), Blanking plugs, Check valves |
| Valve Materials | SS316 barstock body, PTFE seats, Viton®/FKM seals |
| Valve Pressure Rating | 3000 PSI (standard), 6000 PSI (high-pressure) |
| Mounting Options | Wall-mount brackets, panel-mount flanges, free-standing base plates, DIN rail mount |
| Body Construction | Barstock (solid), Pipe & weld (fabricated), Forged (compact) |
| Surface Finish | As-machined, pickled, passivated, electropolished, painted |
| Cleanliness | Oil-free assembly for instrument air; Oxygen cleaning available |
| Identification | Stainless steel tag with P/N, pressure rating, material, customer tag number |
| Documentation | IFC drawings, MTC, pressure test reports, NDT reports |
Complete Product Range
By Valve Type:
| Manifold Type | Valve Description | Best For | Pressure Rating |
|---|---|---|---|
| Ball Valve Manifold | Quarter-turn on/off isolation, full port | Quick shut-off, high cycle life, minimal pressure drop | 3000-6000 PSI |
| Needle Valve Manifold | Multi-turn throttling control, fine adjustment | Precise flow adjustment, metering applications | 3000-6000 PSI |
| No-Valve Manifold | Blanked ports only, customer adds valves | Future expansion, customer preference | N/A |
| Mixed Valve Manifold | Combination of ball and needle valves | Multi-function requirements, different services | 3000 PSI |
| Check Valve Manifold | Integral check valves on outlets | Preventing backflow, critical applications | 3000 PSI |
| Regulator Manifold | Pressure regulators on selected outlets | Zone pressure control, different pressure requirements | 300 PSI |
By End Connection Type:
| Connection Type | Standard | Size Range | Pressure Rating | Application |
|---|---|---|---|---|
| Threaded (NPT) | ASME B1.20.1 | 1/8″ to 2″ | Up to 3000 PSI | General purpose, easy installation |
| Threaded (BSP) | ISO 228 | 1/8″ to 2″ | Up to 3000 PSI | European/Asian markets |
| Socket Weld | ASME B16.11 | 1/8″ to 2″ | Up to 6000 PSI | High-pressure, permanent installations |
| Butt Weld | ASME B16.9 | 1/2″ to 4″ | Up to 6000 PSI+ | Severe service, high temperature |
| Flanged (ASME) | ASME B16.5 | 1/2″ to 4″ | 150# to 2500# | Large manifolds, frequent dismantling |
| Flanged (DIN) | EN 1092 | DN15 to DN100 | PN16 to PN400 | European projects |
| Flanged (JIS) | JIS B2220 | 15A to 100A | 10K to 40K | Japanese/Asian projects |
| Tube Fitting Ends | Various | 1/4″ to 1″ | Up to 3000 PSI | Direct tube connection |
By Body Construction:
| Construction | Description | Size Range | Advantages | Typical Application |
|---|---|---|---|---|
| Barstock | Machined from solid bar | 1/2″ to 2″ | Highest strength, no welds, compact | High-pressure, critical service |
| Pipe & Weld | Fabricated from pipe with welded outlets | 2″ to 4″ | Cost-effective, large sizes | General purpose, instrument air |
| Forged | Forged body with threaded outlets | 1/2″ to 1″ | Compact, high-pressure capability | Limited space, high pressure |
| Modular | Interconnected blocks | Various | Expandable, flexible | Control panels, frequent changes |
By Mounting Configuration:
| Mounting Type | Description | Best For |
|---|---|---|
| Wall Mount | Brackets for vertical surface mounting | Plant areas, compressor rooms |
| Panel Mount | Flanges for cutout mounting | Control panels, analyzer houses |
| Free-Standing | Base plate or legs for floor mounting | Large manifolds, dedicated areas |
| DIN Rail | Clip-on mounting for standard rails | Electrical/control cabinets |
| Pipe Stand | Clamp mounting on vertical/horizontal pipes | Space-limited areas |
By Number of Outlets:
| Outlet Count | Typical Inlet Size | Common Applications |
|---|---|---|
| 2-4 outlets | 1/2″ or 3/4″ | Small panels, local control stations |
| 6-8 outlets | 3/4″ or 1″ | Analyzer houses, equipment skids |
| 10-12 outlets | 1″ or 1-1/4″ | DCS panels, control rooms |
| 14-20 outlets | 1-1/2″ or 2″ | Large control rooms, plant areas |
| 20-40 outlets | 2″ or larger | Main plant distribution, multiple zones |
By Special Features:
| Feature | Description | Application |
|---|---|---|
| Drain Valves | Bottom drain for moisture removal | Wet air systems, outdoor installations |
| Pressure Gauges | Integral gauge on inlet or outlets | Monitoring local pressure |
| Regulators | Pressure reducing on selected outlets | Different pressure requirements |
| Filters | Integral filter elements | Critical instrument protection |
| Check Valves | Prevents backflow | Sensitive instruments |
| Quick Disconnects | Tool-free outlet connections | Frequent changes |
| Color Coding | Anodized or painted outlets | Service identification |
| Heating/Tracing | Electric or steam tracing | Freeze protection |
Material Specifications
Stainless Steel Grades:
| Grade | Chemical Composition | Mechanical Properties | Applications |
|---|---|---|---|
| SS304/L | 18% Cr, 8% Ni, Low C | Tensile: 515 MPa, Yield: 205 MPa | General purpose, food, water |
| SS316/L | 16% Cr, 10% Ni, 2% Mo | Tensile: 515 MPa, Yield: 205 MPa | Chemical, marine, pharmaceutical |
| SS321 | 17% Cr, 9% Ni, Ti stabilized | Tensile: 515 MPa, Yield: 205 MPa | High temperature, welding |
| SS347 | 17% Cr, 9% Ni, Cb stabilized | Tensile: 515 MPa, Yield: 205 MPa | High temperature, nuclear |
| Duplex 2205 | 22% Cr, 5% Ni, 3% Mo | Tensile: 620 MPa, Yield: 450 MPa | Offshore, high chloride, sour service |
| Super Duplex 2507 | 25% Cr, 7% Ni, 4% Mo | Tensile: 795 MPa, Yield: 550 MPa | Extreme corrosion, subsea |
Carbon Steel Grades:
| Grade | Chemical Composition | Mechanical Properties | Applications |
|---|---|---|---|
| A105 | C-Mn steel | Tensile: 485 MPa, Yield: 250 MPa | General purpose, non-corrosive |
| A106 Gr B | C-Mn steel seamless | Tensile: 415 MPa, Yield: 240 MPa | Piping, high temperature |
| A350 LF2 | Low temp carbon steel | Tensile: 485 MPa, Yield: 250 MPa | Low temperature, -50°F |
Nickel Alloys:
| Grade | Description | Applications |
|---|---|---|
| Monel 400 | Ni-Cu alloy | Hydrofluoric acid, seawater, marine |
| Inconel 600 | Ni-Cr alloy | High temperature, oxidizing conditions |
| Inconel 625 | Ni-Cr-Mo alloy | Extreme corrosion, high temperature |
| Hastelloy C276 | Ni-Cr-Mo alloy | Extreme chemical resistance |
| Titanium Gr2 | Commercially pure | Aerospace, medical, extreme corrosion |
Quality & Compliance
Design & Engineering:
| Quality Parameter | Standard / Test |
|---|---|
| Design Code | ASME B31.3 (Process Piping) |
| Pressure Design | ASME B16.34 (Valve Design) |
| Wall Thickness | ASME B36.10 / B36.19 |
| Flange Design | ASME B16.5 / B16.47 |
| Thread Standards | ASME B1.20.1 (NPT), ISO 228 (BSP) |
| Socket Weld Dimensions | ASME B16.11 |
| Butt Weld Dimensions | ASME B16.9 |
Material Quality:
| Parameter | Standard / Test |
|---|---|
| Raw Material Sourcing | Prime mills with ISO 9001 certification |
| Material Certification | EN 10204 3.1 Mill Test Certificate |
| Chemical Composition | Spectro analysis verification |
| Mechanical Properties | Tensile, yield, elongation testing |
| Hardness Testing | Brinell or Rockwell |
| PMI Testing | Positive Material Identification on all alloys |
Welding Quality:
| Parameter | Standard / Test |
|---|---|
| Visual Inspection | 100% of all welds |
| Dye Penetrant Test (DPT) | Optional on critical welds |
| Radiography (RT) | Optional on pressure retaining welds |
| Ultrasonic Test (UT) | Optional on thick sections |
| Hydrostatic Test | 1.5x design pressure for 30 minutes minimum |
| Pneumatic Test | 1.1x design pressure (when specified) |
Cleanliness & Surface:
| Parameter | Standard / Test |
|---|---|
| Standard Cleanliness | Oil-free, debris-free for instrument air |
| Industrial Cleaning | Degreased, washed, dried |
| Oxygen Cleaning | CGA G-4.1 (for oxygen service) |
| Surface Finish | As-welded, pickled, or electropolished |
| Passivation | ASTM A967 for stainless steel |
| Pickling | Removal of heat tint and scale |
Testing & Inspection:
| Test Type | Method | Acceptance Criteria |
|---|---|---|
| Hydrostatic Test | Water at 1.5x design pressure | No leakage, no permanent deformation |
| Pneumatic Test | Air or nitrogen at 1.1x design pressure | No leakage (soap bubble test) |
| Dye Penetrant Test | Visible or fluorescent dye | No indications per ASME V |
| Radiography | X-ray or Gamma ray | ASME VIII UW-51 or UW-52 |
| Ultrasonic Test | Thickness gauging | Per specification |
| Hardness Test | Brinell or Rockwell | Within material spec |
| Dimensional Inspection | Calibrated instruments | Per drawing tolerances |
Certifications & Compliance:
| Certification | Applicability |
|---|---|
| ISO 9001:2015 | Quality management system |
| EN 10204 3.1 | Material traceability |
| ASME B31.3 | Process piping design |
| NACE MR0175 / ISO 15156 | Sour service (oil & gas) |
| NACE MR0103 | Sour service (refining) |
| EAC / TR CU | Eurasian customs union |
Installation Guidelines
Mounting Recommendations:
Wall Mounting:
- Use appropriate anchors for wall material
- Ensure manifold is level (use bubble level)
- Leave minimum 6″ clearance above/below for valve operation
- Provide adequate lighting for valve identification
Panel Mounting:
- Cutout dimensions per drawing
- Support heavy manifolds from back
- Label outlets clearly on panel face
- Consider access for valve operation
Free-Standing:
- Secure base to floor with anchors
- Ensure vertical alignment
- Provide vibration isolation if needed
- Allow access from all sides
Valve Operation:
| Valve Type | Operation | Maintenance |
|---|---|---|
| Ball Valve | 1/4 turn open/close, do not leave partially open | Cycle monthly to prevent sticking |
| Needle Valve | Multi-turn for precise control, do not overtighten | Lubricate stem annually |
Common Mistakes to Avoid:
| Mistake | Consequence | Prevention |
|---|---|---|
| Oversized manifold for flow | Pressure drop, insufficient air | Calculate total flow requirement |
| Undersized inlet | Starvation of end outlets | Inlet at least 2x sum of outlets |
| No isolation valves | Can’t maintain without shutdown | Specify valves on all outlets |
| Poor labeling | Operator errors | Stainless steel tags on all outlets |
| Inadequate support | Vibration, stress on connections | Support at both ends |
| Wrong material | Corrosion failure | Verify chemical compatibility |
Sizing Guidelines
Selection Guide by Application:
| Application | Recommended Configuration | Material | Pressure Class |
|---|---|---|---|
| Control Room Panels | 8-12 outlets, ball valves, panel mount | SS304 | 300 PSI |
| Analyzer Houses | 6-10 outlets, needle valves, wall mount | SS316L | 3000 PSI |
| Offshore Platforms | 10-20 outlets, ball valves, SS tags | Super Duplex | 3000 PSI, NACE |
| Compressor Stations | 4-8 outlets, no valves, pipe mount | CS or SS | 300 PSI |
| High-Pressure Test Stands | 2-6 outlets, needle valves, barstock | SS316 | 6000 PSI |
| Food Processing | 6-12 outlets, ball valves, electropolished | SS316L | 300 PSI, FDA |
| Pharmaceutical | 8-16 outlets, sanitary valves | SS316L, electropolished | 150 PSI, USP |
| Mining | 10-20 outlets, ball valves, rugged | SS304 | 300 PSI |
Global Export Destinations
Samvay Air Header Manifolds are trusted by engineers worldwide. We export regularly to:
North America:
| Country | Key Industries | Ports of Entry |
|---|---|---|
| USA | Oil & Gas, Power, Chemical, Pharma | Houston, New York, Los Angeles |
| Canada | Oil Sands, Power, Mining | Vancouver, Montreal, Toronto |
| Mexico | Oil & Gas, Automotive | Veracruz, Manzanillo |
Europe:
| Country | Key Industries | Ports of Entry |
|---|---|---|
| United Kingdom | Oil & Gas, Pharmaceutical | Felixstowe, Southampton |
| Germany | Chemical, Automotive | Hamburg, Bremerhaven |
| France | Oil & Gas, Nuclear | Le Havre, Marseille |
| Italy | Oil & Gas, Manufacturing | Genoa, Naples |
| Netherlands | Chemical, Refining | Rotterdam |
| Norway | Oil & Gas, Marine | Oslo, Bergen |
| Russia | Oil & Gas, Power | St. Petersburg |
Middle East:
| Country | Key Industries | Ports of Entry |
|---|---|---|
| UAE | Oil & Gas, Petrochemical | Jebel Ali |
| Saudi Arabia | Oil & Gas, Petrochemical | Dammam, Jeddah |
| Qatar | Oil & Gas, LNG | Doha, Mesaieed |
| Kuwait | Oil & Gas | Shuwaikh |
| Oman | Oil & Gas | Sohar |
Asia Pacific:
| Country | Key Industries | Ports of Entry |
|---|---|---|
| Singapore | Oil & Gas, Marine | Singapore Port |
| Malaysia | Oil & Gas, Electronics | Port Klang |
| Indonesia | Oil & Gas, Mining | Jakarta |
| Thailand | Automotive, Chemical | Laem Chabang |
| South Korea | Shipbuilding, Chemical | Busan |
| Japan | Oil & Gas, Manufacturing | Tokyo, Yokohama |
| Australia | Mining, LNG | Perth, Sydney |
Africa:
| Country | Key Industries | Ports of Entry |
|---|---|---|
| South Africa | Mining, Power | Durban |
| Nigeria | Oil & Gas | Lagos |
| Egypt | Oil & Gas, Petrochemical | Alexandria |
| Algeria | Oil & Gas | Algiers |
Industry Applications
Oil & Gas – Upstream:
| Application | Manifold Type | Material | Special Requirements |
|---|---|---|---|
| Wellhead Control Panels | 6-12 outlets, needle valves | SS316 | NACE MR0175, 6000 PSI |
| Offshore Platforms | 10-20 outlets, ball valves | Super Duplex | Saltwater resistance, compact |
| FPSO Vessels | 8-16 outlets, mixed valves | Duplex | Marine approvals |
| Gas Plants | 12-24 outlets, ball valves | SS316 | Low temp, -50°C |
Oil & Gas – Downstream:
| Application | Manifold Type | Material | Special Requirements |
|---|---|---|---|
| Refineries | 8-20 outlets, ball/needle | SS316 | Fire-safe valves, high temp |
| Petrochemical Plants | 10-24 outlets, mixed | SS316/L | Chemical resistance |
| LNG Facilities | 6-16 outlets, extended bonnet | SS316 | Cryogenic service |
Power Generation:
| Application | Manifold Type | Material | Special Requirements |
|---|---|---|---|
| Thermal Power Plants | 8-20 outlets, ball valves | SS304/CS | High temp, vibration resistant |
| Nuclear Power | 4-12 outlets, special valves | SS316/L | Seismic qualified, nuclear grade |
| Gas Turbine Plants | 6-16 outlets, needle valves | SS316 | High pressure, 3000 PSI |
| Hydroelectric | 4-10 outlets, ball valves | SS304 | Outdoor, weatherproof |
Chemical & Petrochemical:
| Application | Manifold Type | Material | Special Requirements |
|---|---|---|---|
| Control Rooms | 12-24 outlets, ball valves | SS304 | Organized, labeled |
| Analyzer Houses | 6-12 outlets, needle valves | SS316L | Zero dead volume |
| Batch Processing | 8-16 outlets, mix valves | SS316 | Quick disconnect options |
| Pilot Plants | 4-8 outlets, modular | SS316 | Flexible, reconfigurable |
Water & Wastewater:
| Application | Manifold Type | Material | Special Requirements |
|---|---|---|---|
| Treatment Plants | 8-16 outlets, ball valves | SS304 | NSF/ANSI 61, UV resistant |
| Desalination | 10-20 outlets, ball valves | Duplex | High chloride resistance |
| Pumping Stations | 4-12 outlets, no valves | SS304/CS | Outdoor, weatherproof |
| Filter Controls | 6-12 outlets, solenoid ready | SS304 | Panel mount |
Food & Beverage:
| Application | Manifold Type | Material | Special Requirements |
|---|---|---|---|
| Processing Lines | 8-16 outlets, ball valves | SS316L | Electropolished, FDA seals |
| Packaging Areas | 12-24 outlets, quick disconnect | SS304 | Washdown capable |
| CIP Systems | 4-10 outlets, special valves | SS316L | High temp, chemical resistant |
| Breweries/Dairies | 6-12 outlets, sanitary | SS316L | 3A standards, crevice-free |
Pharmaceutical:
| Application | Manifold Type | Material | Special Requirements |
|---|---|---|---|
| Cleanrooms | 8-16 outlets, panel mount | SS316L | Electropolished, Ra <0.4μm |
| WFI Systems | 4-10 outlets, sanitary | SS316L | USP Class VI, drainable |
| Bioreactors | 6-12 outlets, needle valves | SS316L | SIP/CIP capable |
| Tableting Areas | 10-20 outlets, compact | SS304 | Oil-free, particle-free |
Customization Options
At Samvay, we understand that every application is unique. Our manifolds can be customized with:
Material Options:
- Standard: SS304, SS316/L, Carbon Steel
- Premium: Duplex, Super Duplex, 6% Mo
- Exotic: Monel, Inconel, Hastelloy, Titanium
- Lined: PTFE-lined for corrosive services
Valve Options:
- Manufacturers: Samvay, or customer-specified brands
- Types: Ball, needle, check, plug, diaphragm
- Special: Fire-safe, low emission, oxygen service
- Actuation: Manual, pneumatic, electric
Connection Options:
- Inlet: Any combination of thread, weld, flange
- Outlets: Mixed sizes on same manifold
- Special: Tube fittings, compression, push-in
Finishing Options:
- Standard: As-machined, pickled
- Premium: Passivated, electropolished
- Special: Painted (customer color), coated
Documentation Options:
- Standard: MTC, pressure test report
- Premium: NDT reports, welding maps
- Comprehensive: IFC drawings, calculation notes, O&M manual
Special Features:
- Heating: Electric heat tracing, steam jacketing
- Insulation: Pre-insulated with cladding
- Instrumentation: Pressure gauges, switches, transmitters
- Tagging: Stainless steel tags, laser etched labels
- Mounting: Custom brackets, seismic rated
Standard Dimensions & Weights
Barstock Manifolds (SS316):
| Inlet Size | Outlet Size | Outlets | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1/2″ | 1/4″ | 4 | 200 | 50 | 75 | 2.5 |
| 1/2″ | 1/4″ | 6 | 280 | 50 | 75 | 3.5 |
| 3/4″ | 1/4″ | 8 | 360 | 60 | 90 | 5.0 |
| 1″ | 1/4″ | 10 | 440 | 70 | 100 | 7.0 |
| 1″ | 3/8″ | 12 | 520 | 70 | 100 | 8.5 |
| 1-1/4″ | 1/2″ | 8 | 440 | 80 | 120 | 10.0 |
Pipe & Weld Manifolds (SS304):
| Inlet Size | Outlet Size | Outlets | Length (mm) | Body Pipe OD | Weight (kg) |
|---|---|---|---|---|---|
| 1-1/2″ | 1/2″ | 6 | 600 | 48.3 mm | 8.0 |
| 2″ | 1/2″ | 8 | 800 | 60.3 mm | 12.0 |
| 2″ | 3/4″ | 10 | 1000 | 60.3 mm | 15.0 |
| 3″ | 1/2″ | 12 | 1200 | 88.9 mm | 22.0 |
| 3″ | 3/4″ | 16 | 1600 | 88.9 mm | 28.0 |
| 4″ | 1″ | 12 | 1400 | 114.3 mm | 35.0 |
Why Choose Samvay Fluid Tekniks Inc.?
1. Engineering Excellence:
- Design Support: We review your P&ID and recommend optimal configurations
- Custom Solutions: 100% built to your specifications, not off-the-shelf compromises
- Application Expertise: Decades of combined experience across all industries
- Value Engineering: We optimize designs for performance and cost
2. Quality Assurance:
- 100% Testing: Every manifold pressure tested before dispatch
- Full Traceability: Complete material documentation
- Cleanliness: Oil-free assembly for instrument air applications
- NDT Options: DPT, RT, UT available on request
3. Competitive Pricing:
- Direct Manufacturer: No middlemen, factory-direct pricing
- Volume Discounts: Tiered pricing for bulk orders
- Annual Contracts: Long-term pricing agreements available
- Freight Optimization: Consolidated shipping for cost savings
4. Quick Turnaround:
| Order Type | Design Time | Fabrication | Shipping |
|---|---|---|---|
| Standard Configurations | 1-2 days | 5-7 days | As per mode |
| Custom Engineered | 3-5 days | 10-14 days | As per mode |
| Complex Systems | 5-7 days | 14-21 days | As per mode |
5. Global Experience:
- Thousands Supplied: Manifolds in service worldwide
- International Standards: Familiar with all major codes
- Multi-Lingual Support: English, Hindi, Arabic, Spanish
- Time Zone Coverage: Support across global business hours
6. After-Sales Support:
- Technical Assistance: Installation guidance, troubleshooting
- Documentation: Complete O&M manuals, drawings
- Spare Parts: Readily available for all components
- Warranty: Comprehensive coverage against defects
Ordering Information
How to Specify Your Manifold:
- Inlet Connection: Size, type (NPT/BSP/flanged), pressure class
- Outlet Connections: Size, type, quantity, spacing
- Valve Type: Ball, needle, none, or mixed
- Material: SS304, SS316, CS, Duplex, etc.
- Pressure Rating: Maximum operating pressure
- Temperature: Minimum and maximum
- Mounting: Wall, panel, free-standing
- Special Requirements: NACE, PED, oxygen cleaning, etc.
- Documentation: Required certificates and reports
- Quantity: Number of manifolds
