From our machining base in Ahmedabad we supply high pressure pipe fittings to the UAE, a market shaped by upstream and offshore oil and gas and LNG and gas processing. The UAE is one of our closest export markets, and Gulf projects specify strict corrosion resistance that duplex and super duplex fittings meet.
High pressure pipe fittings join small bore pipe and tube on hydraulic, chemical injection and process lines where ordinary fittings would leak or fatigue, using forged bodies machined from certified bar stock. In the UAE the typical service is extreme heat, sand and high chloride marine air, so grade selection and documentation matter as much as price. Every order ships with heat traceable material and a test record.
High Pressure Pipe Fittings for industries in the UAE
Chemical injection, hydraulic control and wellhead instrument connections.
Small bore process connections on separators, compressors and metering skids.
High temperature drain, vent and impulse connections around boilers.
Utility steam, compressed air and hydraulic connections.
Choosing the right grade in the UAE
Service conditions in the UAE usually mean extreme heat, sand and high chloride marine air. These are the grades we most often supply for that duty.
| Recommended grade | Why it suits the UAE |
|---|---|
| Super duplex 2507 or S32760 | High chloride air and seawater, where PREN above 40 resists pitting and crevice corrosion |
| SS 316H or alloy steel F11 and F22 | High temperature steam service, supplied with IBR documentation where required |
| SS 316L with impact testing | Low temperature and cryogenic duty, with Charpy test results on request |
High Pressure Pipe Fittings specifications
| Types | Tube to Female, High Pressure Pipe Fittings, Tube to Union, Accessories, Tube to Male |
|---|---|
| Equivalent To | DK-LOK, PARKER, SWAGELOK, HOKE |
| Standard | ASME SA-479, Type 304-SS, BS 970 304S11, DIN 4401, ASTM A276 Type 304 |
| Sizes | 1/8’’ to 2’’ and 3mm to 50mm |
| Ends | Threaded, Welding, JIC |
| Pressure Rating | 1000 Psi, 3000 Psi, 6000 Psi, 10000 Psi |
| Threads | NPT , BSPT, BSPP |
| Specification | Items Made from Hex, ASTM A276; Items made from Round Bar- ASTM A182 |
| HS CODE | 73072900 |

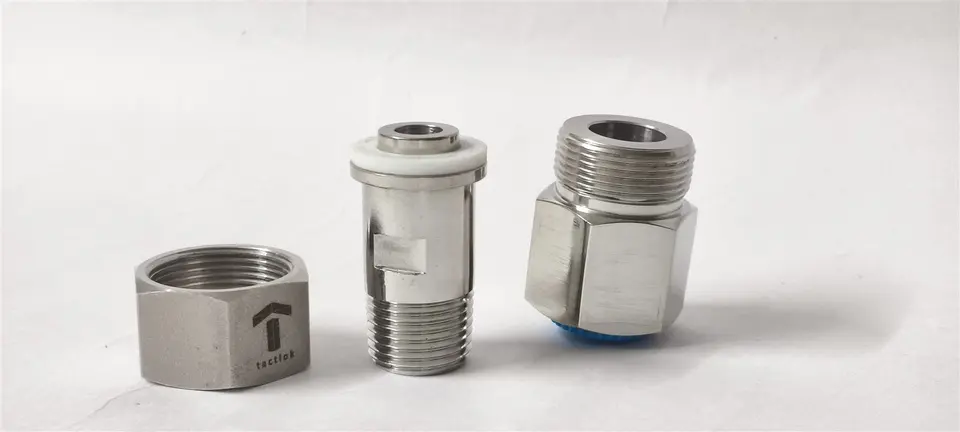

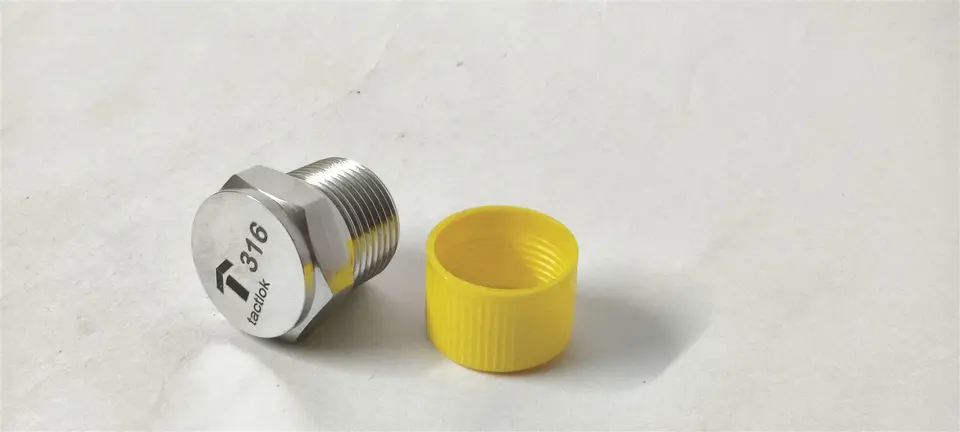

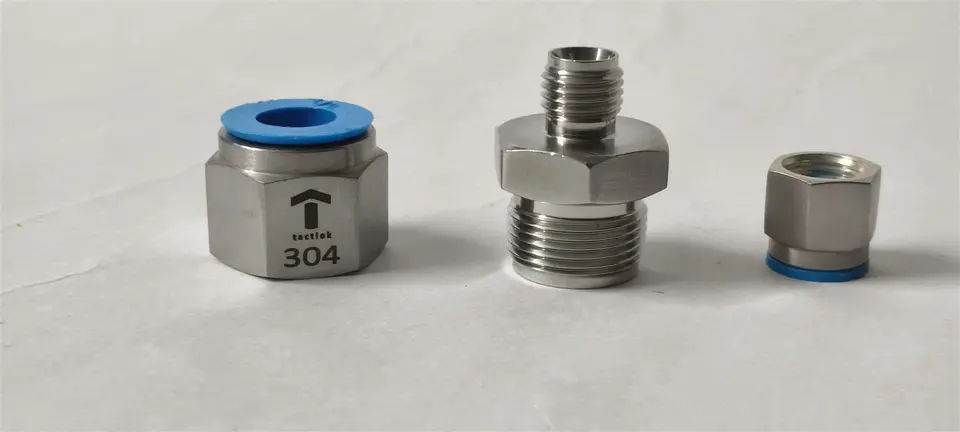

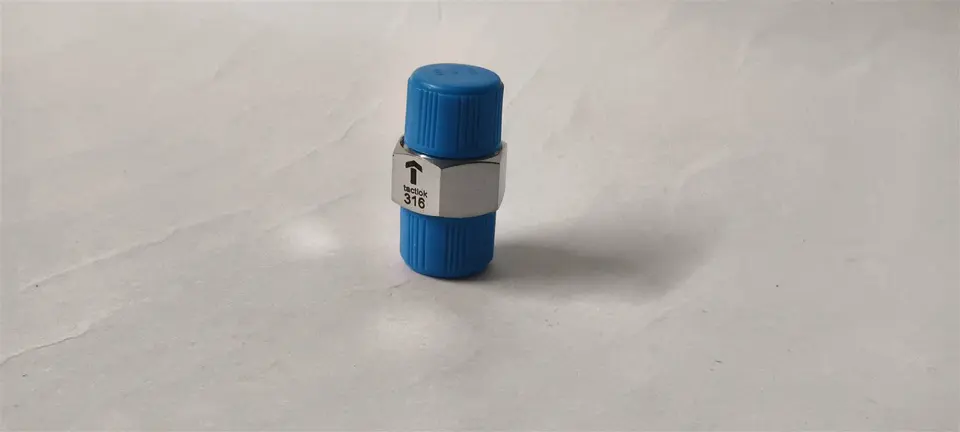

High Pressure Pipe Fittings we supply in the UAE
Standards and documents for projects in the UAE
- ADNOC approved material grades
- NACE MR0175
- ASME B31.3
- EN 10204 3.1
- Positive material identification and hydrostatic test reports on request
- Packing lists, origin certificates and HS code 73072900 or 84818030 on every invoice
Delivery to the UAE
We deliver by sea from Mundra or Nhava Sheva to Jebel Ali in about 5 to 7 days, or by air in 24 to 48 hours. Our regular delivery points include:
- Ruwais
- Jebel Ali
- Abu Dhabi industrial city (ICAD)
- Fujairah
Frequently asked questions
Which material grade do you recommend for projects in the UAE?
For high chloride air and seawater, where PREN above 40 resists pitting and crevice corrosion, we usually recommend Super duplex 2507 or S32760. Where conditions are milder, SS 316H or alloy steel F11 and F22 is a cost effective alternative. Share your process data and we will confirm the grade before quoting.
Can Samvay supply high pressure pipe fittings to sites around Ruwais?
Yes. We ship by sea from Mundra or Nhava Sheva to Jebel Ali in about 5 to 7 days, or by air in 24 to 48 hours. Regular consignments reach Ruwais, Jebel Ali, Abu Dhabi industrial city (ICAD) and Fujairah, and mixed orders of valves, fittings and accessories can be consolidated into one shipment with a single set of documents.
What certificates come with orders for the UAE?
Orders for the UAE are supplied to ADNOC approved material grades, NACE MR0175, ASME B31.3 and EN 10204 3.1. Every part is heat marked and traceable to its mill certificate, and third party inspection by the agency of your choice can be arranged before dispatch.
Which sizes and pressure ratings can you supply?
Our high pressure pipe fittings are available from 1/8 inch to 2 inch (3 mm to 50 mm), rated at 1000, 3000, 6000 and 10000 psi, with NPT, BSPT and BSPP threads, weld ends or JIC ends. Bodies made from hex are produced to ASTM A276 and items from round bar to ASTM A182, which matters when your specification for the UAE calls out the bar standard.
How do I request a quote for the UAE?
Email your item list with sizes, grade, quantity and delivery point to sales@samvayglobal.com or message us on WhatsApp at +91 77389 26862. We reply within one working day with price, lead time and shipping terms for the UAE.
